Mainboard:
|

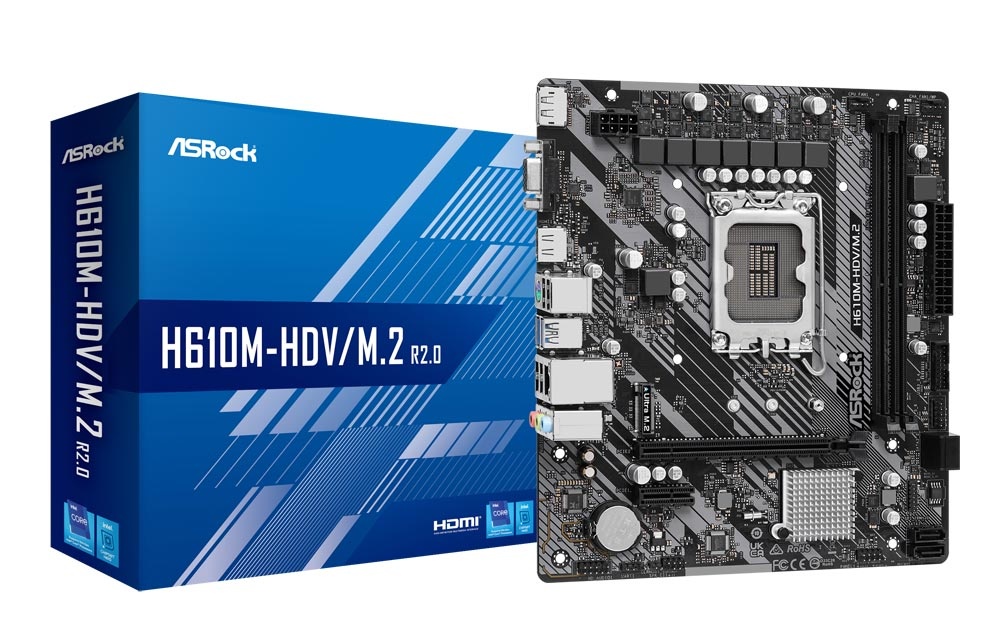

ASRock H610M-HDV/M.2 R2.0
Intel H610-Chipsatz
1 x PCI Express 4.0 x16 Slot
2 x PCI Express 3.0 x1 Slots
1x Gigabit LAN
Realtek® ALC897 codec, 7.1-Kanal-Sound
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4 x SATA 6Gb/s-Schnittstellen
1 x 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode

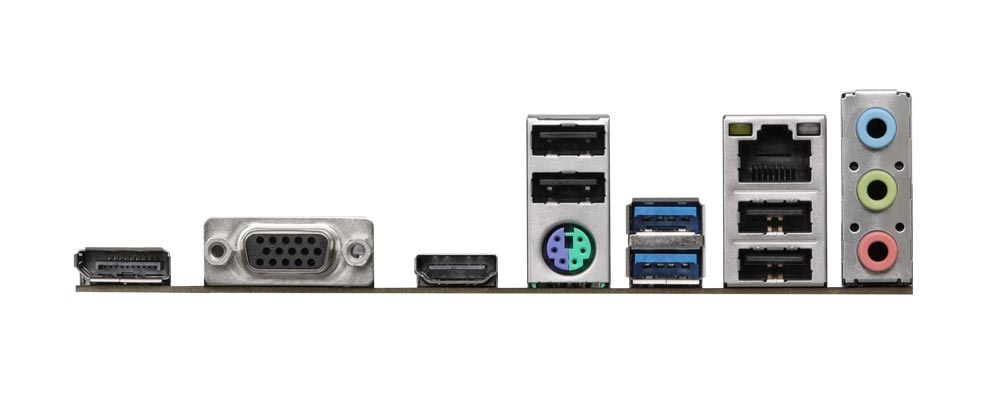

1 x HDMI
1 x DisplayPort
1 x VGA
|
|
Prozessor:
|
Intel Core i5-12400
|
Sockel:
|
1700
|
|
Codename:
|
Alder Lake-S
|
|
TDP:
|
65-117W
|
|
Anzahl Prozessorkerne:
|
6
|
|
Anzahl Threads:
|
12
|
|
Basistakt:
|
2.50GHz
|
|
Turbotakt:
|
4.40GHz
|
|
Freier Multiplikator:
|
nein
|
|
L2-Cache:
|
7.5MB (6x 1.25MB)
|
|
Level 3 Cache:
|
16 MB
|
|
Speicherkontroller:
|
Dual Channel PC5-38400U (DDR5-4800), unterstützt auch PC4-25600U (DDR4-3200)
|
|
PCIe-Lanes:
|
16x PCIe 5.0, 4x PCIe 4.0
|
|
CPU-Funktionen:
|
GNA 3.0, DL Boost, Optane Memory Support, Speed Shift, Turbo Boost 2.0, Hyper-Threading, VT-x, VT-d, VT-x EPT, Intel 64, SSE4.1, SSE4.2, AVX, AVX2, Idle States, EIST, Thermal
Monitoring, VMD, AES-NI, Secure Key, OS Guard, XD Bit, Boot Guard, MBE, CET
|
|
Fertigung:
|
Intel 7 (10nm Enhanced SuperFin, Intel)
|
|
geeignete Board-Chipsätze:
|
B660, H610, H670, W680, Z690
|
|
Lieferumfang:
|

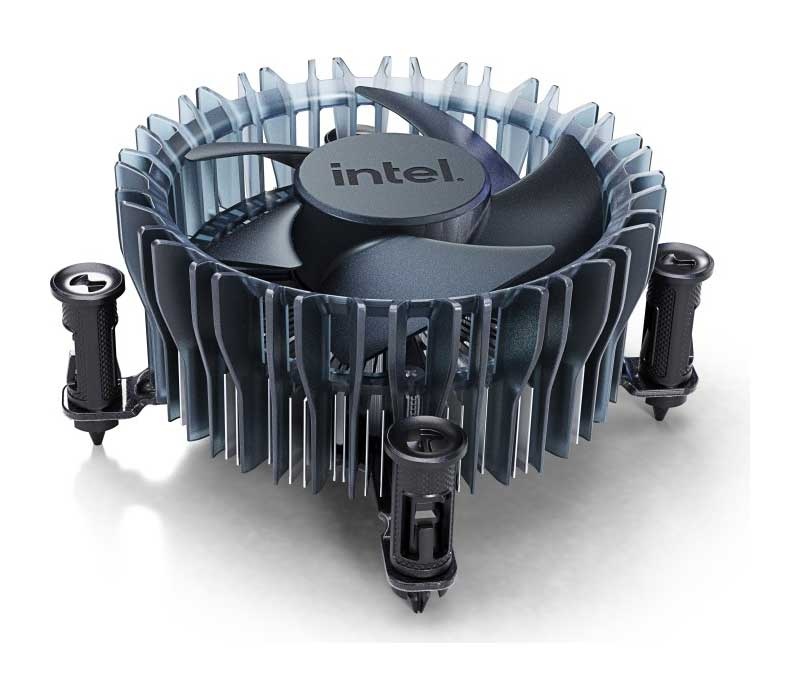

mit CPU-Kühler (Intel Laminar RM1)
|
|
integrierter Grafik-Prozessor:
|
GPU Type: Intel UHD 730
iGPU-Einheiten: 24EU
iGPU-Shader: 192
Base frequency (MHz): 300
Maximum frequency (MHz): 1450
iGPU-Interface: HDMI 2.1 (4096x2160@60Hz), DisplayPort 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz)
GPU-Features: DirectX 12.1, OpenGL 4.5, OpenCL 2.1, Vulkan 1.0, Quick Sync Video, Clear Video HD, 4x Display Support, H.265 encode/decode, VP9 encode/decode, AV1 decode, HDCP 2.3
|
|
