Sockel: 1700
Codename: Raptor Lake-S
TDP: 60W (Processor Base Power), 110W (Maximum Turbo Power)
Anzahl Prozessorkerne: 4
Anzahl Threads: 8
Basistakt: 3.40GHz
Turbotakt: 4.70GHz (Turbo Boost 2.0)
Freier Multiplikator: nein
L2-Cache: 5MB (4x 1.25MB)
Level 3 Cache: 12 MB
Speicherkontroller: Dual Channel DDR5-4800 (PC5-38400), DDR4-3200 (PC4-25600), 76.8GB/​s, max. 192GB
PCIe-Lanes: 16x PCIe 5.0, 4x PCIe 4.0
CPU-Funktionen: AES-NI, AVX, AVX2, Boot Guard, CET, DL Boost, EIST, GNA 3.0, Idle States, Instruction Set 64bit (Intel 64), ISM, MBEC, OS Guard, Secure Key, Speed Shift, SSE4.1, SSE4.2, Thermal Monitoring, VMD, VT-d, VT-x, VT-x EPT, XD Bit
geeignete Board-Chipsätze: B660, B760, H610, H610E, H670, H770, Q670, Q670E, R680E, W680, Z690, Z790

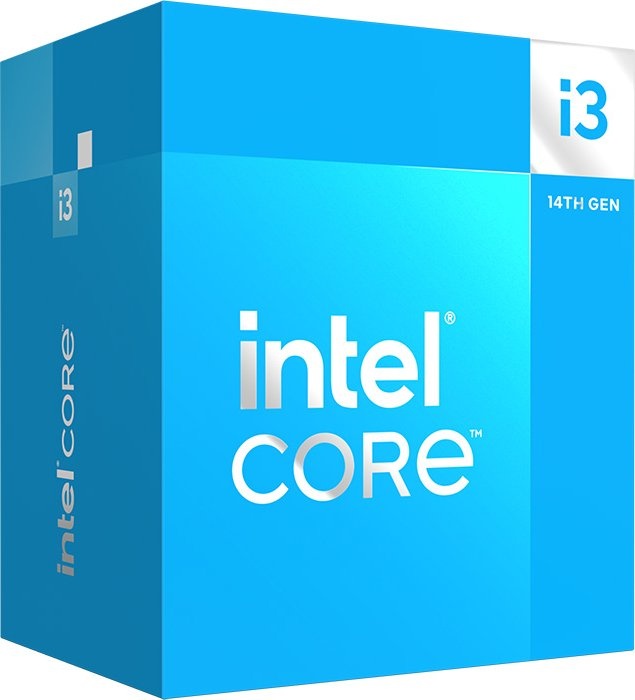

Lieferumfang: mit CPU-Kühler (Intel Laminar RM1)
integrierter Grafik-Prozessor: GPU Type: Intel UHD 730
iGPU-Einheiten: 24EU
iGPU-Shader: 192
Base frequency (MHz): 300
Maximum frequency (MHz): 1500
iGPU-Interface: DP 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz), HDMI 2.1 (4096x2160@60Hz)
iGPU-Features: 4x Display Support, 1x Codec Engine /​ Video Decode Box, Intel Clear Video HD, Intel Quick Sync Video, AV1 decode, H.265 encode/​decode, VP9 encode/​decode, HDCP 2.3, DirectX 12, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0
