Sockel: 1700
Codename: Raptor Cove (P-Core) + Gracemont (E-Core)
TDP: 65W (Processor Base Power), 219W (Maximum Turbo Power)
Anzahl Prozessorkerne: 24 (8+16)
Anzahl Threads: 32 (16+16)
Basistakt: 2.00GHz (P-Core), 1.50GHz (E-Core)
Turbotakt: 5.80GHz (Thermal Velocity Boost), 5.60GHz (Turbo Boost Max 3.0), 5.40GHz (P-Core), 4.30GHz (E-Core)
Freier Multiplikator: nein
L2-Cache: 32MB (8x 2MB + 16x 1MB)
Level 3 Cache: 36 MB
Speicherkontroller: Dual Channel DDR5-5600 (PC5-44800), DDR4-3200 (PC4-25600), 89.6GB/​s, max. 192GB
PCIe-Lanes: 16x PCIe 5.0, 4x PCIe 4.0
CPU-Funktionen: AES-NI, AVX, AVX2, Boot Guard, CET, DL Boost, EIST, GNA 3.0, ISM, Idle States, Instruction Set 64bit (Intel 64), MBEC, OS Guard, SSE4.1, SSE4.2, Secure Key, Speed Shift, TVB, TXT, Thermal Monitoring, Thread Director, VMD, VT-d, VT-x, VT-x EPT, XD Bit
Fertigung: Intel 7
geeignete Board-Chipsätze: B660, B760, H610, H610E, H670, H770, Q670, Q670E, R680E, W680, Z690, Z790

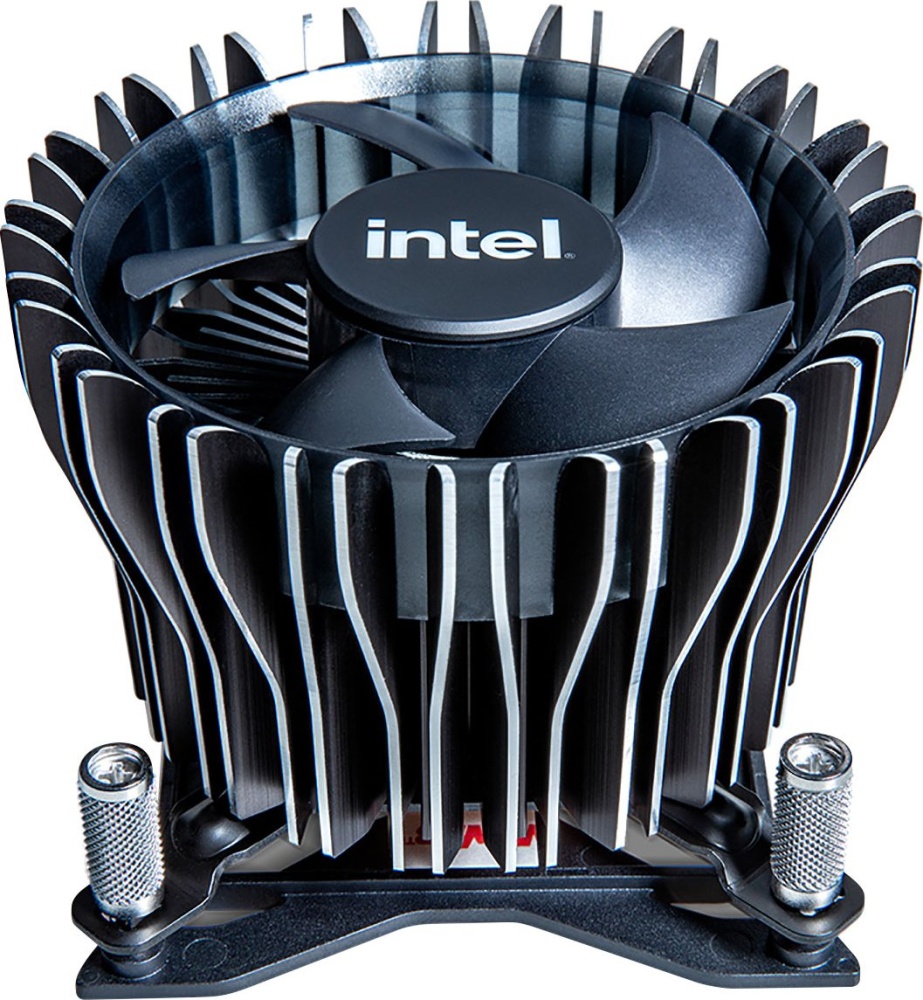

Lieferumfang: mit CPU-Kühler (Intel Laminar RH1)
integrierter Grafik-Prozessor: GPU Type: Intel UHD 770
iGPU-Einheiten: 32EU
iGPU-Shader: 256
Base frequency (MHz): 300
Maximum frequency (MHz): 1650
iGPU-Interface: DP 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz), HDMI 2.1 (4096x2160@60Hz)
GPU-Features: 4x Display Support, 2x Multi-Format Codec Engine, Intel Clear Video HD, Intel Quick Sync Video, AV1 decode, H.265 encode/​decode, VP9 encode/​decode, HDCP 2.3, DirectX 12.1, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0
