Sockel: 1851
Codename: Arrow Lake-S
TDP: 65W (Processor Base Power), 121W (Maximum Turbo Power)
Anzahl Prozessorkerne: 14 (6C+8c)
Anzahl Threads: 14 (6+8)
Basistakt: 3.40GHz (P-Core), 2.90GHz (E-Core)
Turbotakt: 5.00GHz (Turbo Boost 2.0), 5.00GHz (P-Core), 4.40GHz (E-Core)
Freier Multiplikator: nein
L2-Cache: 26MiB (6x 3MiB + 2x 4MiB)
Level 3 Cache: 26MiB
Speicherkontroller: Dual Channel DDR5, max. 192GB
Speicherkompatibilität: max. DDR5-5600 UDIMM (PC5-44800, 89.6GB/​s), max. DDR5-6400 CUDIMM (PC5-51200, 102.4GB/​s)
PCIe-Lanes: 24x PCIe 5.0 (verfügbar: 20)
CPU-Funktionen: AES-NI, AMT, AVX, AVX2, Boot Guard, CET, DL Boost, EIST, GNA 3.5, Hardware Shield, Idle States, Instruction Set 64bit (Intel 64), ISM, MBEC, One-Click Recovery, OS Guard, RPE, Secure Key, SIPP, Speed Shift, SSE4.1, SSE4.2, TDT, Thermal Monitoring, Thread Director, Thunderbolt 4, Total Memory Encryption - Multi Key, TVB, TXT, VMD, VT-d, VT-rp, VT-x, VT-x EPT, XD Bit
Fertigung: TSMC 3nm
geeignete Board-Chipsätze: B860, H810, Z890
integrierter Grafik-Prozessor: GPU Type: Intel Graphics
iGPU-Einheiten: 3Xe/​48EU/​384SP
Base frequency (MHz): 300
Maximum frequency (MHz): 2000
iGPU-Interface: DP 2.1 UHBR20 (7680x4320@60Hz), eDP 1.4b (3840x2400@120Hz), HDMI 2.1 (7680x4320@60Hz))
GPU-Features: 4x Display Support, 2x Codec Engines /​ Video Decode Boxes, Intel Quick Sync Video, AV1 encode/​decode, H.265 encode/​decode, H.266 encode/​decode, VP9 encode/​decode, HDCP 2.3, DirectX 12.1, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0
iGPU-Rechenleistung: 1.54 TFLOPS (FP32)
AI-Rechenleistung (NPU): 13 TOPS (Intel AI Boost), Gesamthöchstleistung: 19 TOPS

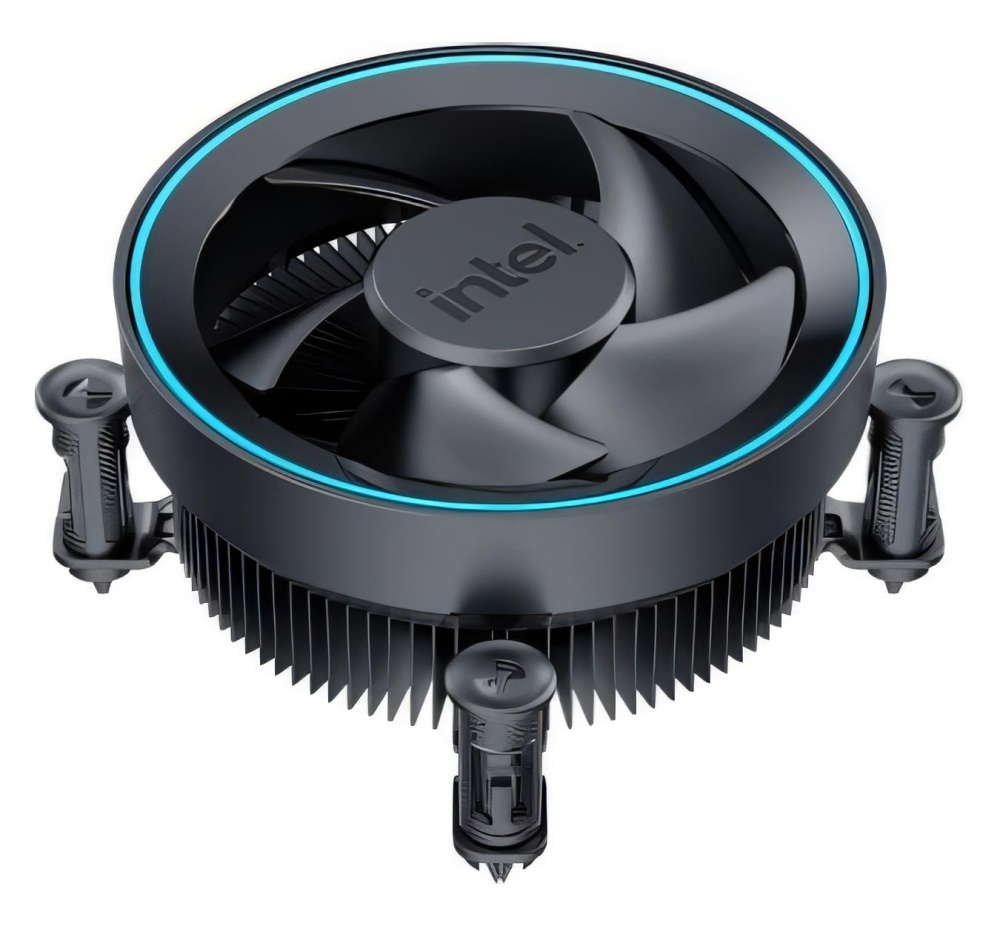

Lieferumfang: mit CPU-Kühler (Intel Laminar RM2)
