Grafikchip: GPU: NVIDIA GeForce RTX 4060
  Taktfrequenz:
Takt Boost
2460MHz
Takt Basis
1830MHz

  Chip-Konfiguration:: 24SM (3072 ALUs /​ 96 TMUs /​ 32 ROPs), 24 RT Cores, 96 Tensor Cores, 24MB L2-Cache
  Chip-Funktionen: Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
  API-Unterstützung: DirectX 12 Ultimate (12_2) /​ CUDA 8.9 /​ Vulkan 1.3 /​ OpenCL 3.0 /​ OpenGL 4.6 /​ Shader Model 6.7
  Transcoding-Engine 1x NVENC (8th Gen, max. Sessions: 5), 1x NVDEC (5th Gen), Info
  Encoding: AV1, H.265 (4K YUV 4:2:0 /​ 4K YUV 4:4:4 /​ 4K Lossless /​ 8K /​ HEVC 10bit support /​ HEVC B Frame support), H.264 (YUV 4:2:0 /​ YUV 4:4:4 /​ Lossless)
  Decoding: AV1 (8bit /​ 10bit), H.265 (8bit 4:2:0 /​ 10bit 4:2:0 /​ 12bit 4:2:0 /​ 8bit 4:4:4 /​ 10bit 4:4:4 /​ 12bit 4:4:4), H.264, VP9 (8bit /​ 10bit /​ 12bit), VP8, VC-1, MPEG-2, MPEG-1
Speicher: 8GB GDDR6, 128bit, 17Gbps, 2125MHz, 272GB/​s
Schnittstelle: PCIe 4.0 x16 (x8)
Anschlüsse: 1x HDMI 2.1a, 3x DisplayPort 1.4a
Abmessungen: 250x118x42mm  (LxBxH), Dual-Slot
Stromanschlüsse: 1x 8-Pin PCIe
Besonderheiten:

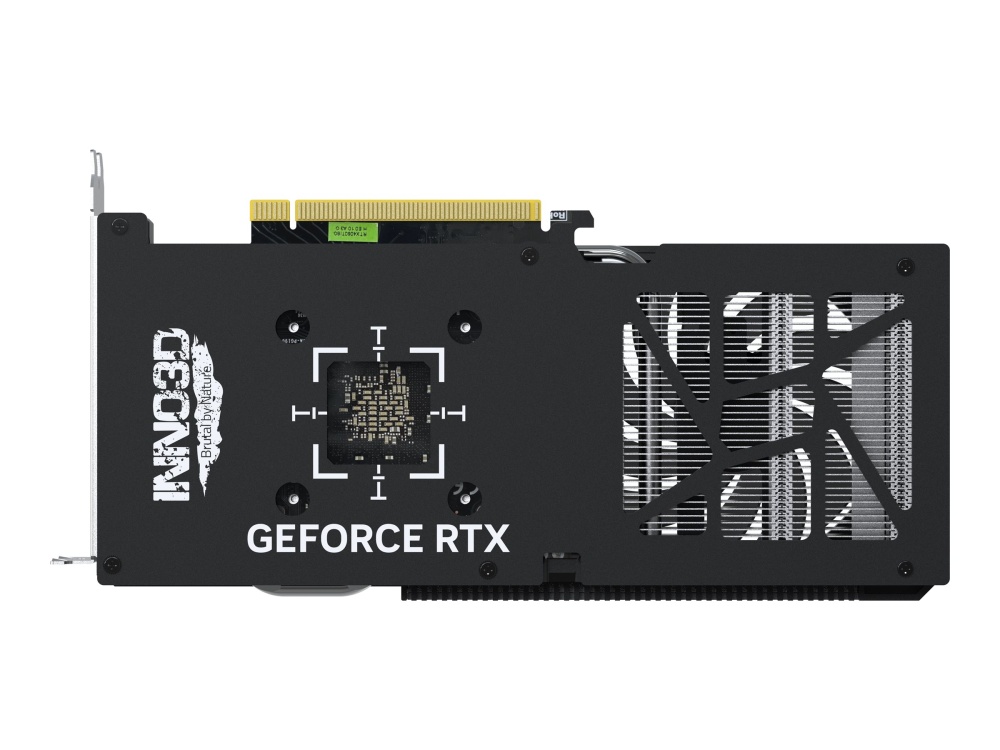

Backplate
