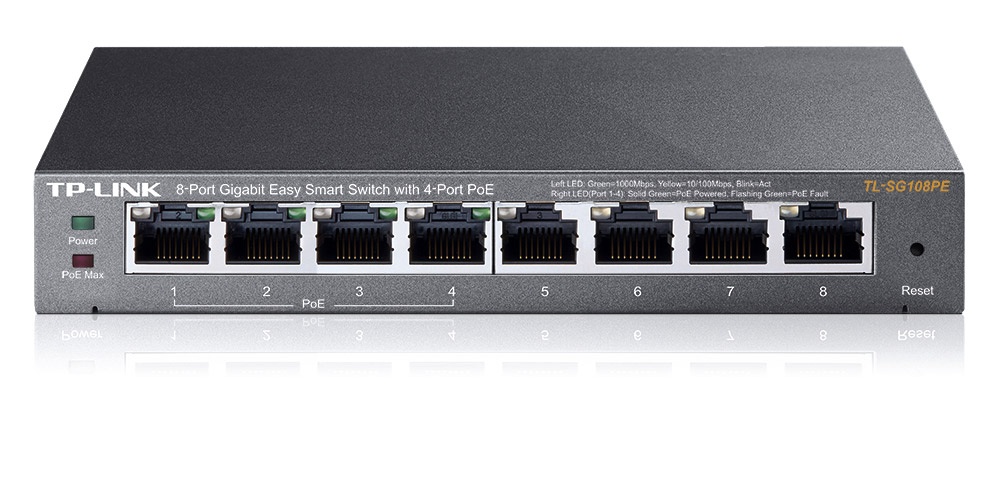

- 8x 10/100/1000Mbps ports provide instant large file transfers
- Equipped with 4 802.3af PoE ports with up to 15.4W for each port
- Supports PoE power up to 55W for all PoE ports
- IEEE 802.3x flow control provides reliable data transfers
- 15KB Jumbo frame improves performance of large data transfers
- Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
- Port/802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Abundant VLAN features improve network security via traffic segmentation
- IGMP Snooping optimizes multicast applications
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
| Standards und Protokolle |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Schnittstellen |
8x 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) |
| Lüfter | lüfterlos |
| Netzteil | extern (Output: 48VDC / 1.25A) |
| Stromverbrauch |
Maximum (PoE on): 65.2W (220V/50Hz) Maximum (PoE off): 5.2W (220V/50Hz) |
| PoE |
Standard: 802.3 af compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 55W |
| Packet Forwarding Rate | 11.9Mpps |
| MAC Address Table | 4k |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 15KB |
| Quality of Service |
Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features |
IGMP Snooping Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management |
Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| Certification | FCC, CE, RoHS |
| Packungsinhalt |
TL-SG108PE Power Adapter Installation Guide Resource CD Rubber Feet |
| Systemvoraussetzungen | Microsoft® Windows® XP/Vista/7/8/8.1/10 for running Utility |
