Sockel:

AM5 Sockel
Prozessor:
  1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipsatz: AMD A620
Speicher: Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
Memory Profile (XMP) memory modules
Grafik: Integrated Graphics Processor with AMD Radeon™ Graphics support:
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  • Support for DisplayPort 1.4 version.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

Steckplätze: CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Storage: CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

Chipset:

  • 2 x SATA 6Gb/s connectors
RAID: RAID 0 and RAID 1 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices
Sound: Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WLAN: Realtek® Wi-Fi 6E RTL8852CE
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
USB: CPU:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 1 x USB 2.0/1.1 port on the back panel

Chipset:

  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Interne I/O Anschlüsse: 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
1 x chassis intrusion header

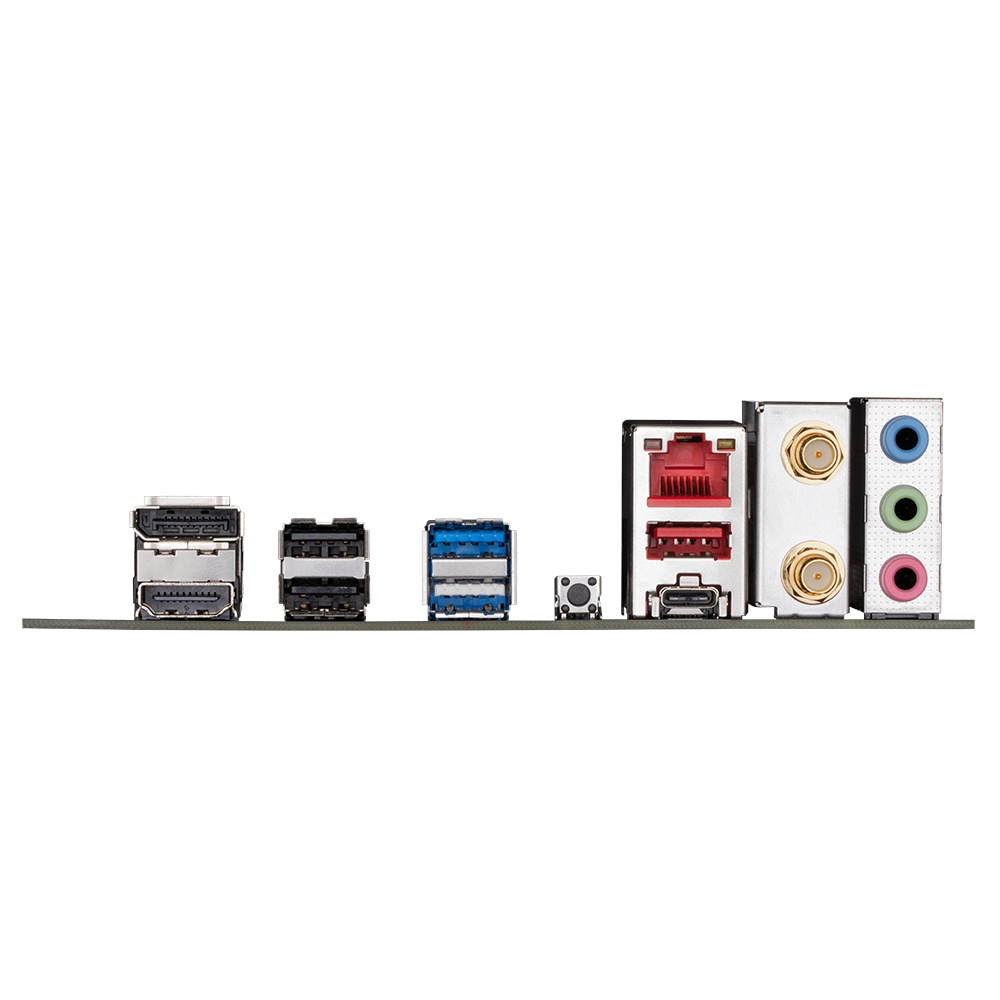

Rückseite I/O Panel: 1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
Formfaktor: Mini-ITX
Abmessungen : 17.0cm x 17.0cm
unterstützte BS :   - Microsoft® Windows® 10/11 64-bit
