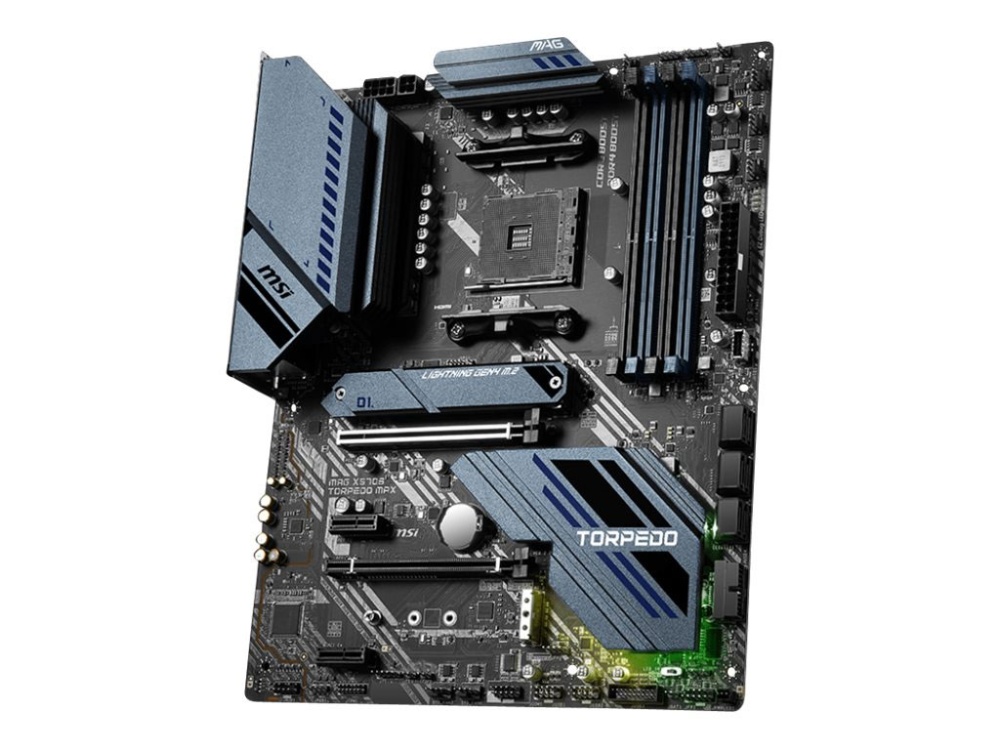

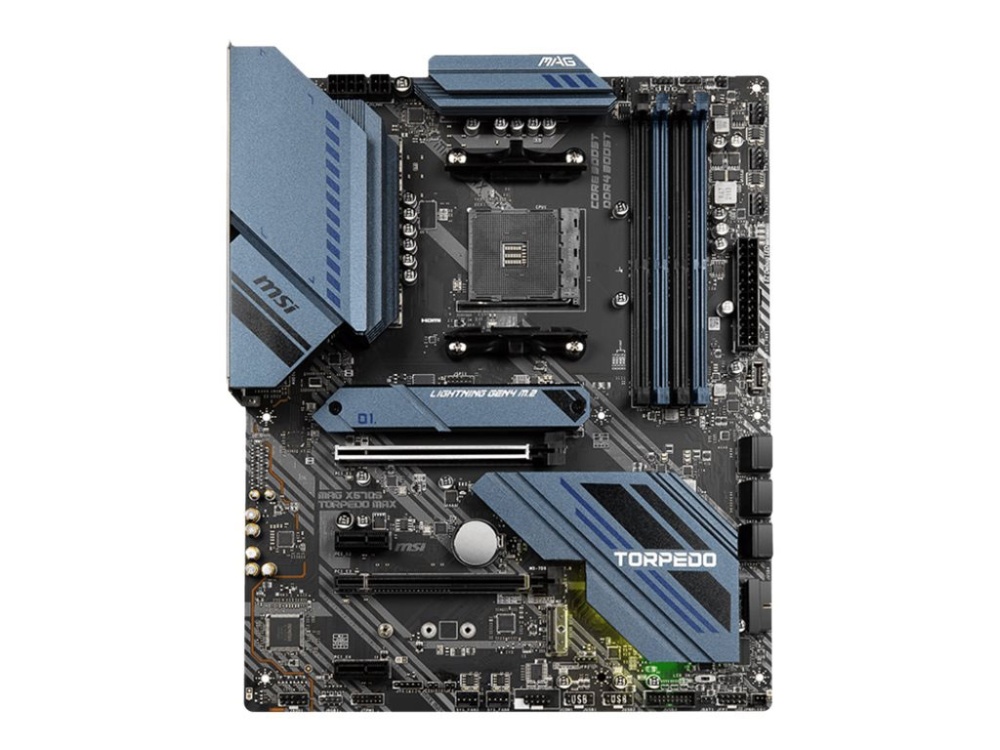

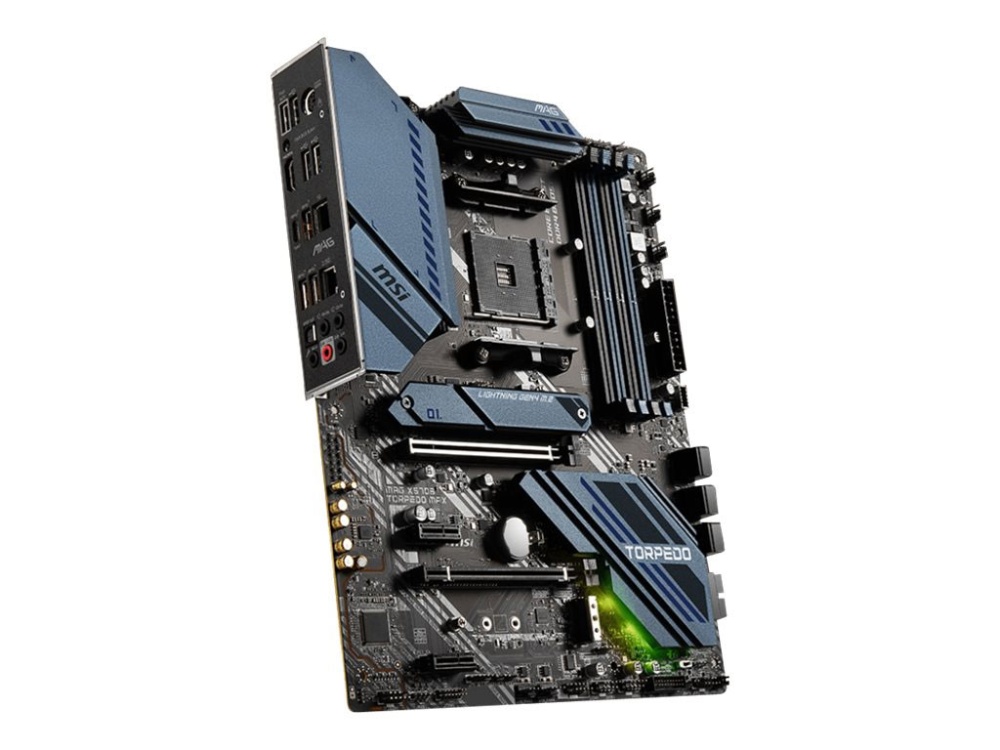

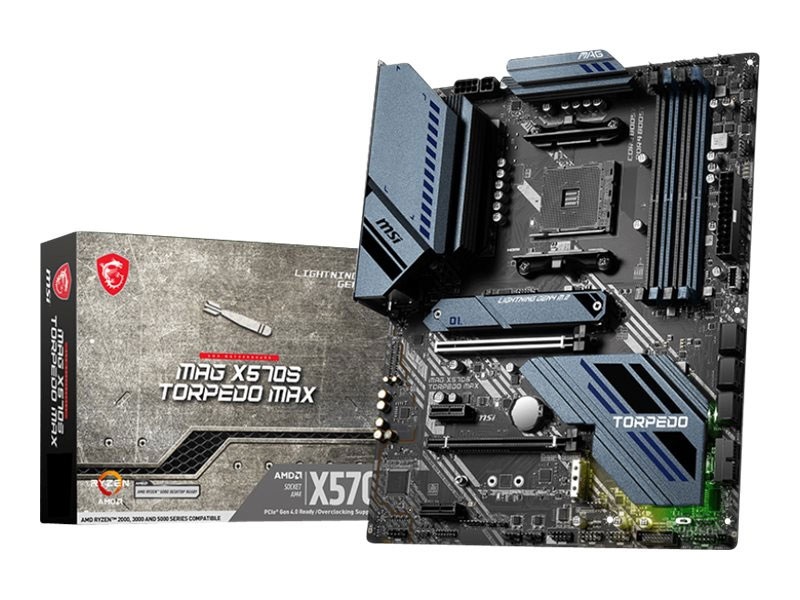

MSI MAG X570S Torpedo Max, AM4, AMD X570, ATX

AM4 Sockel

• Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors1
• Supports Socket AM4

• 4x DDR4 memory slots, support up to 128GB
• Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1
• Max overclocking frequency by A-XMP OC mode:
  • For Ryzen™ 5000 G-Series & 4000 G-Series processors
    • 1DPC 1R Max speed up to 5100 MHz
    • 1DPC 2R Max speed up to 4000 MHz
    • 2DPC 1R Max speed up to 4266 MHz
    • 2DPC 2R Max speed up to 3600 MHz
  • For Ryzen™ 5000 Series & 3000 Series processors
    • 1DPC 1R Max speed up to 5100 MHz
    • 1DPC 2R Max speed up to 3866 MHz
    • 2DPC 1R Max speed up to 4000 MHz
    • 2DPC 2R Max speed up to 3600 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

• 1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz 1 2

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

• Supports PCIe 4.0 / PCIe 3.0 specification
  • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
• 1x PCIe x16 slot (From processor)
  • PCI_E1 supports PCIe 4.0/ 3.0 x16
• 1x PCIe x16 slot (From X570 chipset)
  • PCI_E3 supports PCIe 4.0/ 3.0 x4
• 2x PCIe 3.0 x1 slots (From X570 chipset)

• 6x SATA 6Gb/s ports (from AMD X570 Chipset)
• 2x M.2 slots (Key M)
  • Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors
  • Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor
  • Supports up to SATA 6Gb/s
  • M2_1 slot (from Processor)
    • Support 2280/22110 storage devices
  • M2_2 slot (from AMD X570 Chipset)
    • Supports 2242/ 2260/ 2280 storage devices

Realtek® ALC4080 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

• 1x Realtek® 8125B 2.5Gbps LAN Controller
• 1x Realtek® RTL8111H 1Gbps LAN Controller

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump connector
• 4x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Serial port connector
• 1x Chassis Intrusion connector

• 2x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED
• 1X EZ LED Control switch

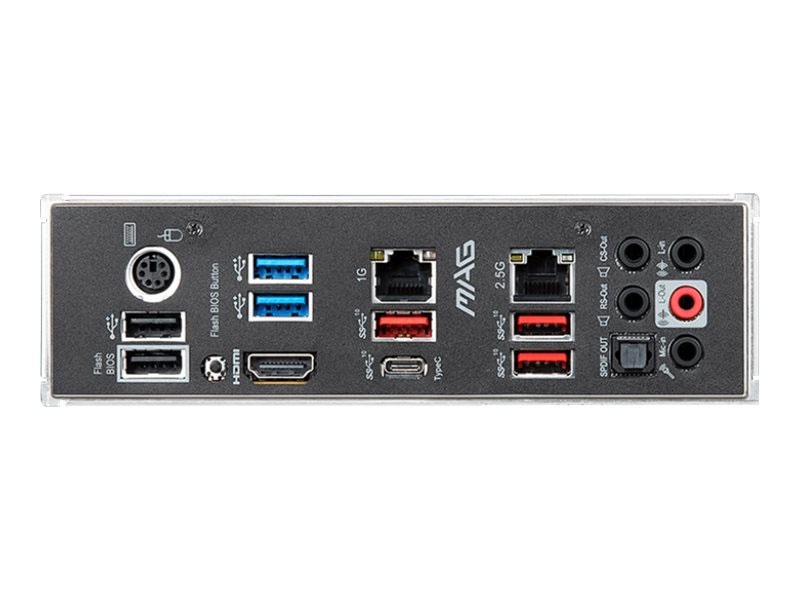

1. PS/2 Mouse / Keyboard
2. USB 3.2 Gen 1 5Gbps (Type-A)
3. Gigabit LAN Port
4. 2.5G LAN Port
5. HD Audio Connectors
6. USB 2.0 Port
7. Flash BIOS Button
8. HDMI 2.1 Port
9. USB 3.2 Gen 2 10Gbps (Type-C)
10. USB 3.2 Gen 2 10Gbps (Type-A)
11. Optical S/PDIF OUT
