Sockel:

AM5 Sockel
Prozessor:
  1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipsatz: AMD B650
Speicher: - Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC)
  • Max. capacity of system memory: 192GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Grafik: Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Steckplätze: CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  • 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*

Chipset:

  • 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)


  • Supports AMD CrossFire™
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)


*Supports NVMe SSD as boot disks


Storage: CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors


*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
RAID: - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*


*Requires additional M.2 NVMe expansion cards to support RAID 10
Sound: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
LAN: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
USB: - 1 x USB 3.2 Gen2 Type-C (Rear)
  • 1 x USB 3.2 Gen2 Type-A (Rear)
  • 1 x USB 3.2 Gen1 Type-C (Front)
  • 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)


*All USB ports support ESD Protection
Interne I/O Anschlüsse: - 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
  • 1 x CPU Fan Connector (4-pin)***
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x 4 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header

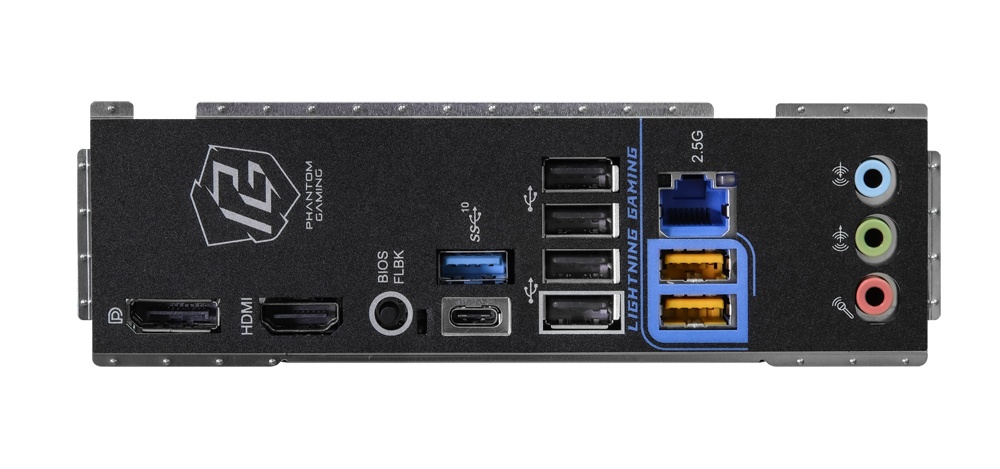

Rückseite I/O Panel: - 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
  • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
  • 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.)
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Formfaktor: Micro-ATX
Abmessungen : 24.4 cm x 24.4 cm
unterstützte BS :   - Microsoft® Windows® 10/11 64-bit
