Prozessor: - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • Digi Power design
  • 6 Power Phase design
  • Supports Intel® Hybrid Technology
  • Supports Intel® Turbo Boost Max 3.0 Technology
Chipsatz: Intel® H610 Express Chipset
Speicher:
  • Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • Supports DDR4 non-ECC, un-buffered memory up to 3200
  • Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 64GB
  • Supports Intel® Extreme Memory Profile (XMP) 2.0
Grafik: - Intel® Xe Graphics Architecture (Gen 12)
  • Three graphics output options: eDP 1.4, HDMI and DisplayPort 1.4
  • Supports Triple Monitor
  • Supports eDP 1.4 with max. resolution up to Full HD (1920x1080) @ 60Hz
  • Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
  • Supports HDCP 2.3 with eDP 1.4, HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports


*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Steckplätze: CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

  • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)


*Supports NVMe SSD as boot disks
Storage: Chipset:
  • 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
  • 4 x SATA3 6.0 Gb/s Connectors**


*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

** If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
Sound: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Supports Surge Protection
LAN: - Gigabit LAN 10/100/1000 Mb/s
  • Giga PHY Intel® I219V
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports UEFI PXE
Wireless LAN: - 802.11ac WiFi Module
  • Supports IEEE 802.11a/b/g/n/ac
  • Supports Dual-Band (2.4/5 GHz)
  • Supports high speed wireless connections up to 433Mbps
  • Supports Bluetooth + High speed class II

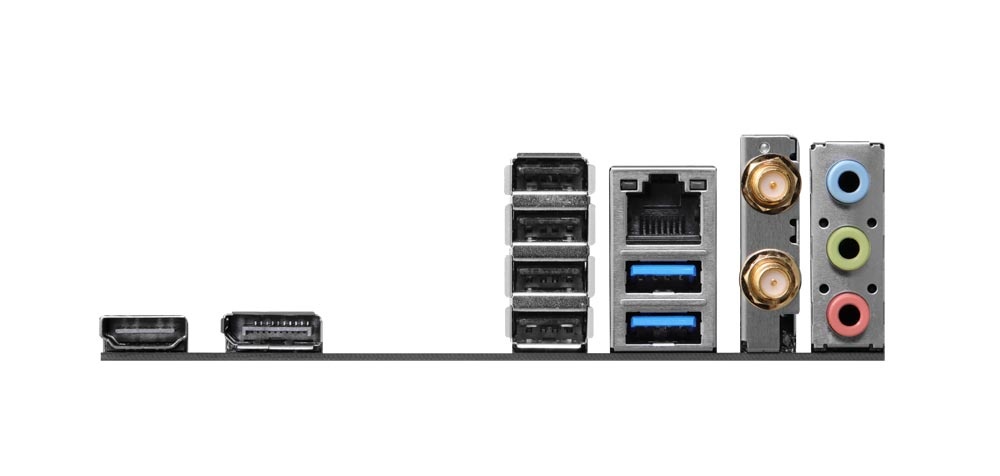

Anschlüsse Rückseite: - 2 x Antenna Ports
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  • 4 x USB 2.0 Ports (Supports ESD Protection)*
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone


*CNVi BT shares bandwidth with the top USB 2.0 port (USB_1). When CNVi BT is used, USB_1 becomes unavailable.
Anschlüsse intern: - 1 x eDP Signal Connector
  • 1 x CPU Fan Connector (4-pin)*
  • 1 x Chassis Fan Connector (4-pin)**
  • 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)


*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Formfaktor: Mini-ITX: 17.0 cm x 17.0 cm
unterstütze Betriebssysteme: - Microsoft® Windows®10 64-bit / 11 64-bit
