Prozessor: - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • Supports Intel® Hybrid Technology
  • Supports Intel® Turbo Boost Max 3.0 Technology
  • Supports Intel® Thermal Velocity Boost (TVB)
  • Supports Intel® Adaptive Boost Technology (ABT)
Chipsatz: Intel® Z790 Express Chipset
Speicher: - Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
  • Max. capacity of system memory: 64GB
  • Supports Intel® Extreme Memory Profile (XMP) 3.0


*1DPC 1R Up to 6800+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively.
Grafik: - Intel® Xe Graphics Architecture (Gen 12)
  • 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
  • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz


*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Steckplätze: CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

  • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)


*Supports PCIe riser cards to extend one x16 slot to two x8 slots
Supports NVMe SSD as boot disks
Storage:

CPU:

  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
  • 4 x SATA3 6.0 Gb/s Connectors
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices


*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Sound: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
LAN: - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V)
  • 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)

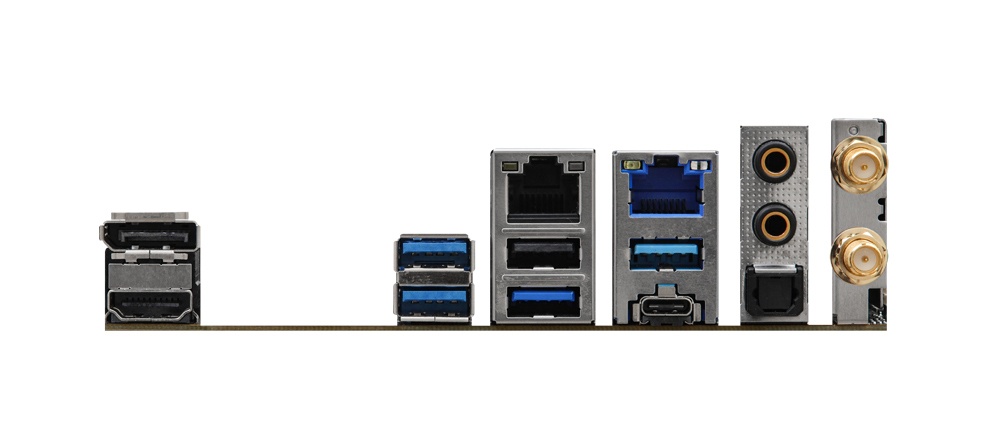

Anschlüsse Rückseite: - 2 x Antenna Ports
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x Optical SPDIF Out Port
  • 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
  • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  • 1 x USB 2.0 Port
  • 2 x RJ-45 LAN Ports
  • 1 x Line Out Jack (Gold Audio Jack)
  • 1 x Microphone Input Jack (Gold Audio Jack)
Anschlüsse intern: - 1 x eDP Signal Connector
  • 1 x RGB LED Header*
  • 1 x Addressable LED Header**
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  • 2 x Chassis Fan Connectors (4-pin)****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*****


*Supports in total up to 12V/3A, 36W LED Strip

**Supports in total up to 5V/3A, 15W LED Strip

***CPU_FAN1/WP supports the fan power up to 2A (24W).
CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

****CHA_FAN1~2 support the fan power up to 1A (12W).

*****Actual speed depends on USB devices and extension cable in the chassis.
Formfaktor: Mini-ITX Form Factor: 17.0 cm x 17.0 cm
unterstütze Betriebssysteme: - Microsoft® Windows®10 64-bit / 11 64-bit
*Windows® 10 only supports version 21H2 or later
