Prozessor:
  1. LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  2. L3 cache varies with CPU
Chipsatz: Intel® H610 Express Chipset
Speicher:
  1. Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Grafik: Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    • Support for HDMI 2.1 version and HDCP 2.3.

    ** Support native HDMI 2.1 TMDS compatible ports

  3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    • Support for DisplayPort 1.2 version and HDCP 2.3.
  4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    • Support for DisplayPort 1.2 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time
Steckplätze:
  1. 1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
Storage:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
Sound:
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    • To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN: - Intel Gigabit LAN 100/1000 Mb/s
USB:
Chipset:
  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
  1. 4 x USB 2.0/1.1 ports available through the internal USB headers

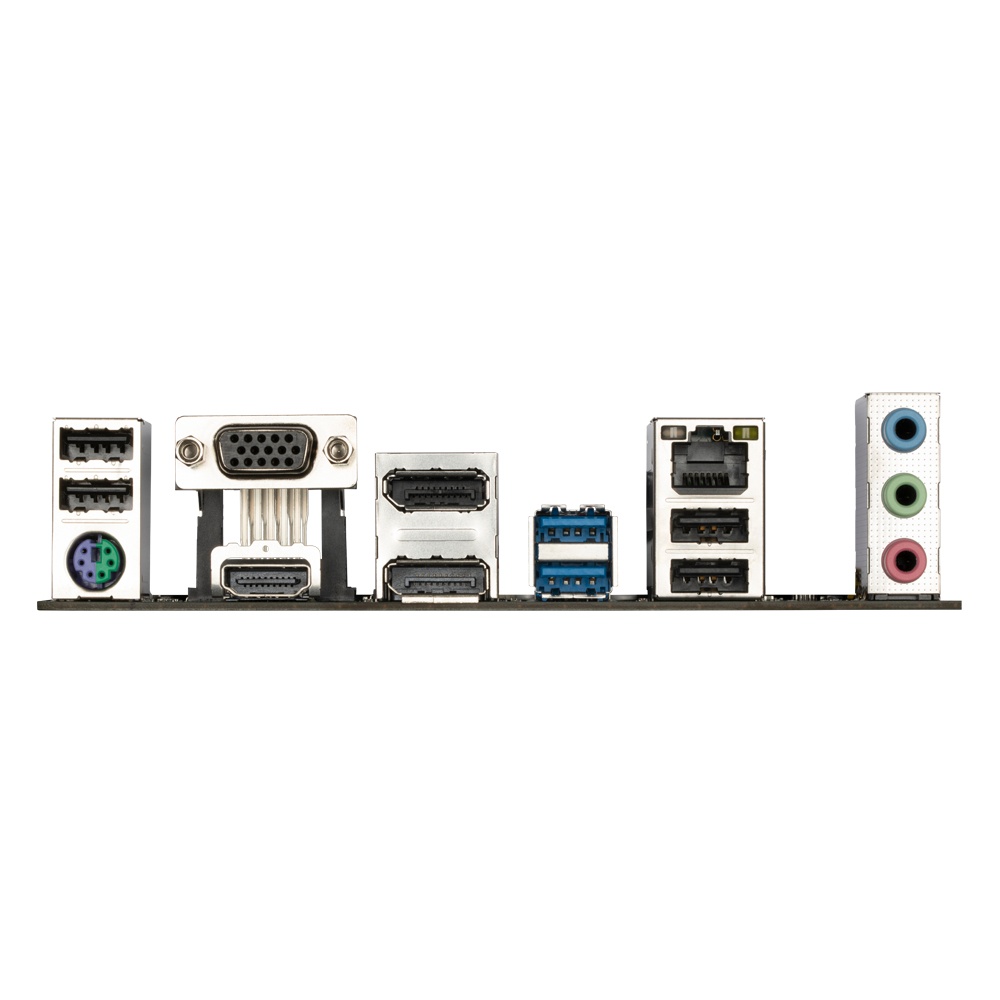

Anschlüsse Rückseite:
  1. 1 x PS/2 keyboard/mouse port
  2. 2 x USB 3.2 Gen 1 ports
  3. 4 x USB 2.0/1.1 ports
  4. 1 x D-Sub port
  5. 2 x DisplayPorts
  6. 1 x HDMI 2.0 port
  7. 1 x RJ-45 port
  8. 3 x audio jacks
Anschlüsse intern:
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x RGB LED strip header
  6. 1 x M.2 Socket 3 connector
  7. 4 x SATA 6Gb/s connectors
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.2 Gen 1 header
  11. 2 x USB 2.0/1.1 headers
  12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  13. 2 x serial port headers
  14. 1 x Clear CMOS jumper
  15. 1 x chassis intrusion header
Formfaktor:
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
unterstütze Betriebssysteme: - Microsoft® Windows®10 64-bit / 11 64-bit
