Prozessor: - Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
  • 5 Power Phase design
  • Supports Intel® Turbo Boost Max 3.0 Technology
Chipsatz: Intel® H470
Speicher: - Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
  • Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 64GB
  • Supports Intel® Extreme Memory Profile (XMP) 2.0
  • 15μ Gold Contact in DIMM Slots


*11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.
Grafik: - 1 x HDMI
Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz
Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz
  • 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920x1200) 60Hz
  • 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz


*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Graphics specifications may vary between CPU types.
Steckplätze: Intel® 11th Gen & 10th Gen Processors:
  • 1 x PCIe 4.0 x16 Slot (PCIE1)*

Intel® 11th Gen Processors support PCIe 4.0 x16
Intel® 10th Gen Processors support PCIe 3.0 x16
Intel® H470 Chipset:

  • 1 x PCIe 3.0 x1 Slot (PCIE2)*


*Supports NVMe SSD as boot disks
Storage: Chipset:
  • 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
  • 4 x SATA3 6.0 Gb/s Connectors
Sound: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN:

- Gigabit LAN 10/100/1000 Mb/s

  • Realtek 8111H
USB:

- 6 x USB 3.2 Gen1 (4 Rear, 2 Front)

  • 6 x USB 2.0 (2 Rear, 4 Front)

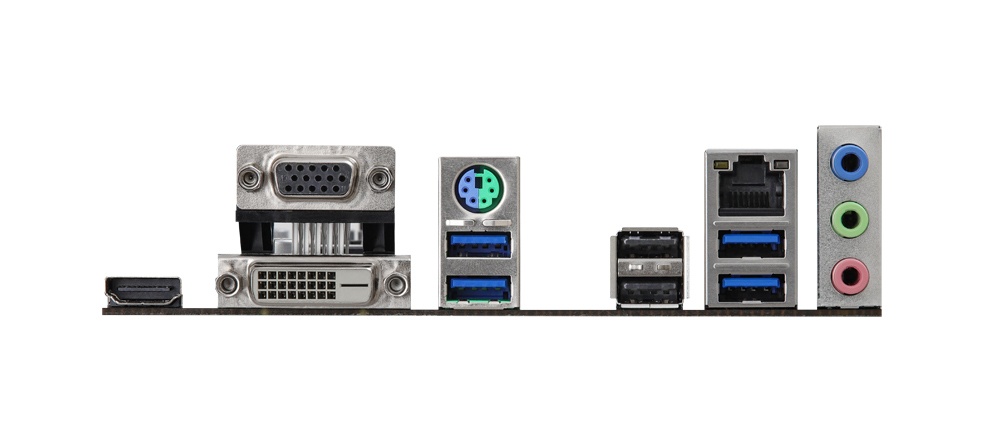

Anschlüsse Rückseite: - 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 2 x USB 2.0 Ports
  • 4 x USB 3.2 Gen1 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Anschlüsse intern: - 1 x COM Port Header
  • 1 x SPI TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin)*
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  • 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Formfaktor: Micro ATX Form Factor: 23.1 cm x 19.8 cm
unterstütze Betriebssysteme: Microsoft® Windows® 10 64-bit / 11 64-bit
