Prozessor: - Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
Chipsatz: Intel® H470
Speicher:
  1. 11th Generation Intel® Core™ i9/i7/i5 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 10th Generation Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules
Grafik: Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    • Support for DisplayPort 1.2 version and HDCP 2.3.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    • Support for HDMI 1.4 version and HDCP 2.3.
  3. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    • The D-Sub port is only available with the 10th Generation processors.
  4. Support for up to 3 displays at the same time
    • Only available with the 10th Generation processors.
(Graphics specifications may vary depending on CPU support.)
Steckplätze: CPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage: Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
Sound:
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
LAN:
  1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB:
  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header

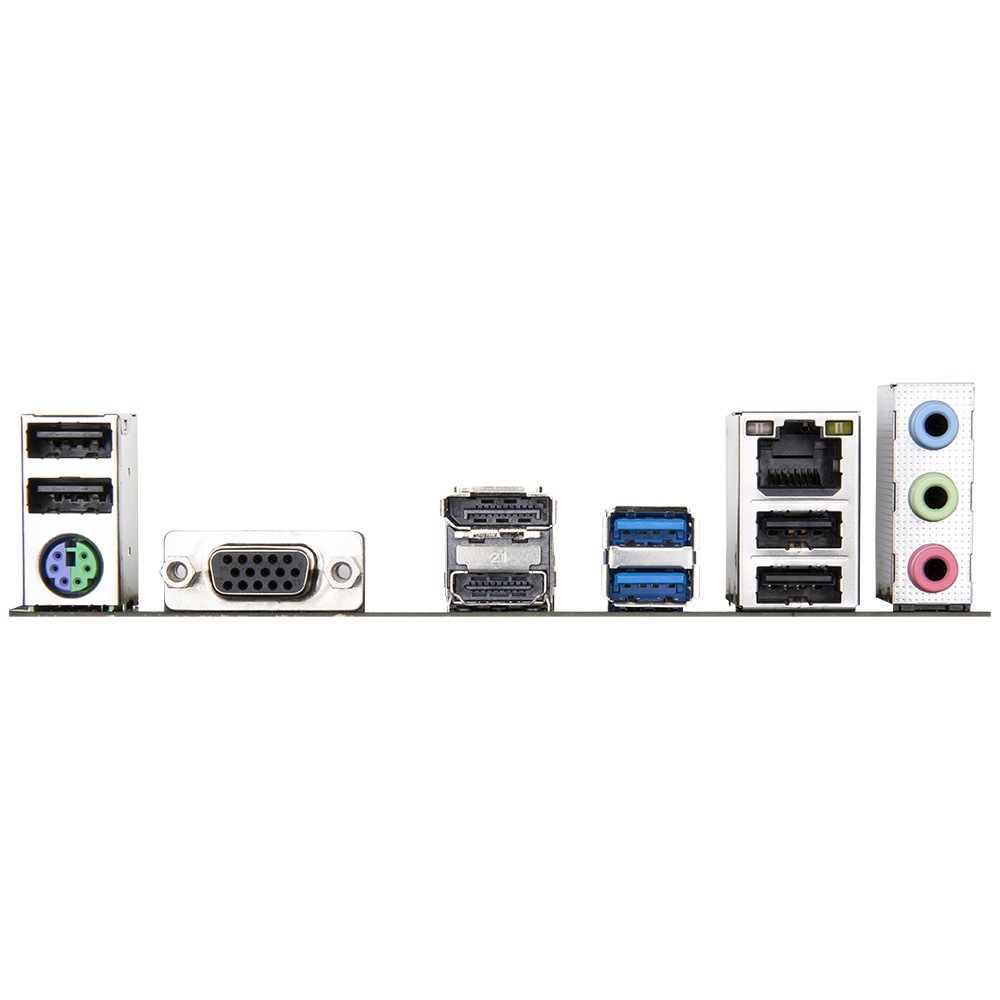

Anschlüsse Rückseite:
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 2 x USB 3.2 Gen 1 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks

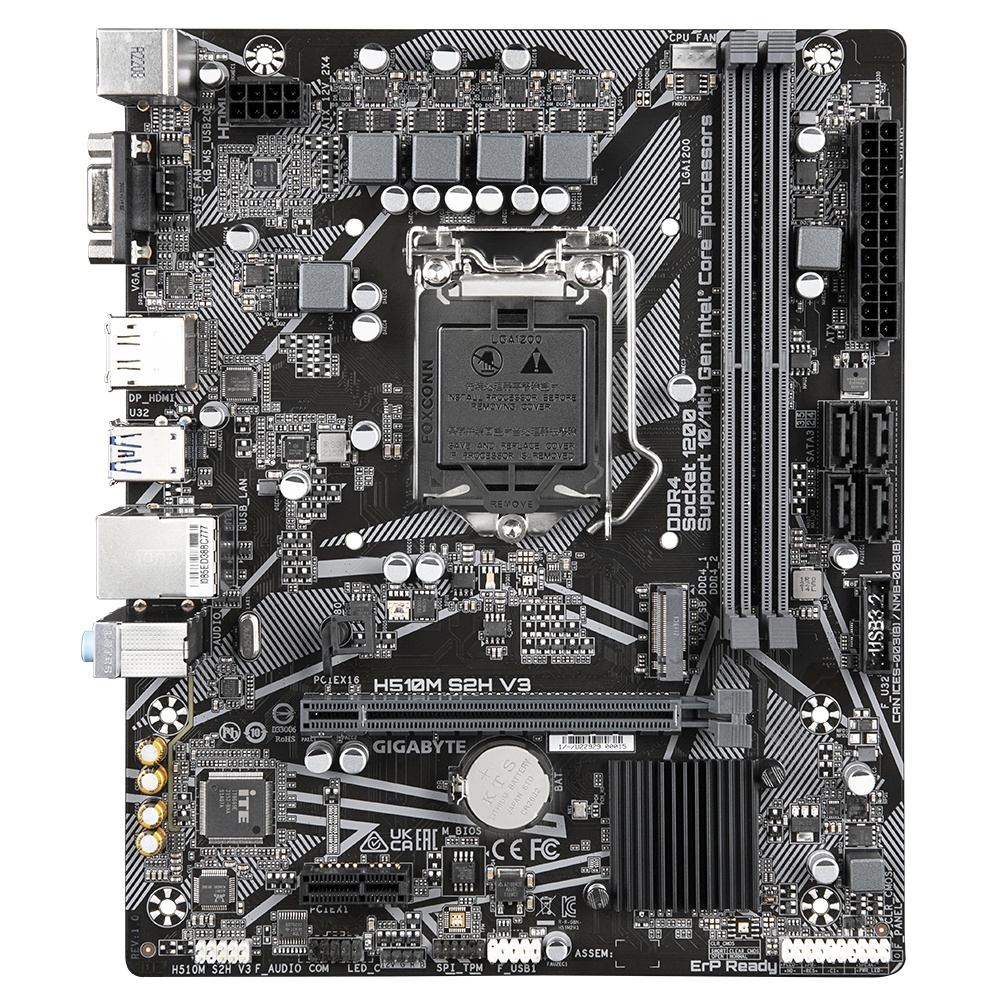

Anschlüsse intern:
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x RGB LED strip header
  6. 1 x M.2 Socket 3 connector
  7. 4 x SATA 6Gb/s connectors
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.2 Gen 1 header
  11. 1 x USB 2.0/1.1 header
  12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  13. 1 x serial port header
  14. 1 x Clear CMOS jumper
Formfaktor: Micro ATX Form Factor: 22.6cm x 18.5cm
unterstütze Betriebssysteme: Microsoft® Windows® 10 64-bit / 11 64-bit
