Prozessor: - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • Supports Intel® Hybrid Technology
  • Supports Intel® Turbo Boost Max 3.0 Technology
  • Supports Intel® Thermal Velocity Boost (TVB)
  • Supports Intel® Adaptive Boost Technology (ABT)
Chipsatz: Intel® Z790 Express Chipset
Speicher: - Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
  • Max. capacity of system memory: 128GB
  • Supports Intel® Extreme Memory Profile (XMP) 3.0
Grafik: - Intel® Xe Graphics Architecture (Gen 12)
  • 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
  • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz


*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Steckplätze: CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

  • 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
  • 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE3 and PCIE5)*
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)


  • Supports AMD CrossFire™
*Supports NVMe SSD as boot disks
Storage: CPU:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
  • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors
*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Sound: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
LAN: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Phantom Gaming LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control

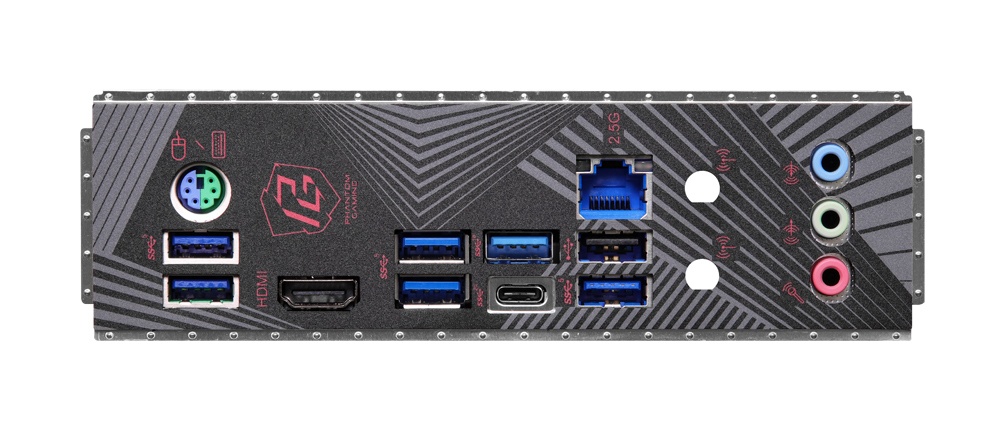

Anschlüsse Rückseite: - 2 x Antenna Mounting Points
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
  • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  • 5 x USB 3.2 Gen1 Ports
  • 1 x USB 2.0 Port
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Anschlüsse intern: - 1 x eDP Signal Connector
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
  • 1 x CPU Fan Connector (4-pin)***
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  • 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  • 1 x 24 pin ATX Power Connector
  • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header


*Supports in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).

*****CHA_FAN1~5/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
Formfaktor: ATX Form Factor: 30.5 cm x 24.4 cm
unterstütze Betriebssysteme: - Microsoft® Windows®10 64-bit / 11 64-bit
Windows® 10 only supports version 21H2 or later
