Prozessor:
  1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  2. L3 cache varies with CPU
Chipsatz: Intel® B760 Express Chipset
Speicher:
  1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Grafik: Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    • Support for DisplayPort 1.2 version and HDCP 2.3
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    • Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Steckplätze: CPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    • For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
  1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage: CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
  2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Sound:
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
    • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN:
  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB: Chipset:
  1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  4. 1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

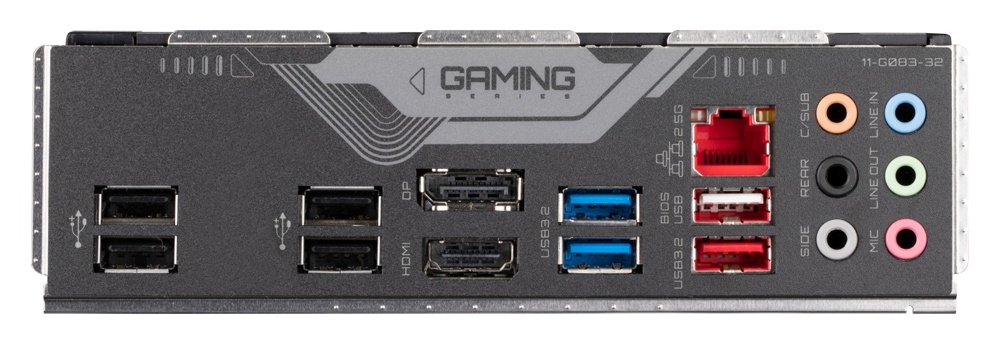

Anschlüsse Rückseite:
  1. 1 x USB 3.2 Gen 2 Type-A port (red)
  2. 2 x USB 3.2 Gen 1 ports
  3. 5 x USB 2.0/1.1 ports
  4. 1 x DisplayPort
  5. 1 x HDMI port
  6. 1 x RJ-45 port
  7. 6 x audio jacks
Anschlüsse intern:
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x CPU fan/water cooling pump header
  5. 3 x system fan headers
  6. 1 x system fan/water cooling pump header
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 3 x M.2 Socket 3 connectors
  10. 4 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x S/PDIF Out header
  14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  18. 1 x serial port header
  19. 1 x Q-Flash Plus button
  20. 1 x reset button
  21. 1 x reset jumper
  22. 1 x Clear CMOS jumper
Formfaktor: ATX Form Factor: 30.5cm x 24.4cm
unterstütze Betriebssysteme: - Microsoft® Windows®10 64-bit / 11 64-bit
