Prozessor:
  1. LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  2. L3 cache varies with CPU
Chipsatz: Intel® H610 Express Chipset
Speicher:
  1. Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Grafik: Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    • Support for HDMI 2.1 version and HDCP 2.3.

    ** Support native HDMI 2.1 TMDS compatible ports

(Graphics specifications may vary depending on CPU support.)
Steckplätze:
  1. 1 x PCI Express x16 slot, running at x16
    • For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)

  2. 1 x PCI Express x1 slot
    (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
Storage:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
Sound:
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
LAN: - Intel Gigabit LAN 10/100/1000 Mb/s
USB: Chipset:
  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
  1. 4 x USB 2.0/1.1 ports available through the internal USB headers

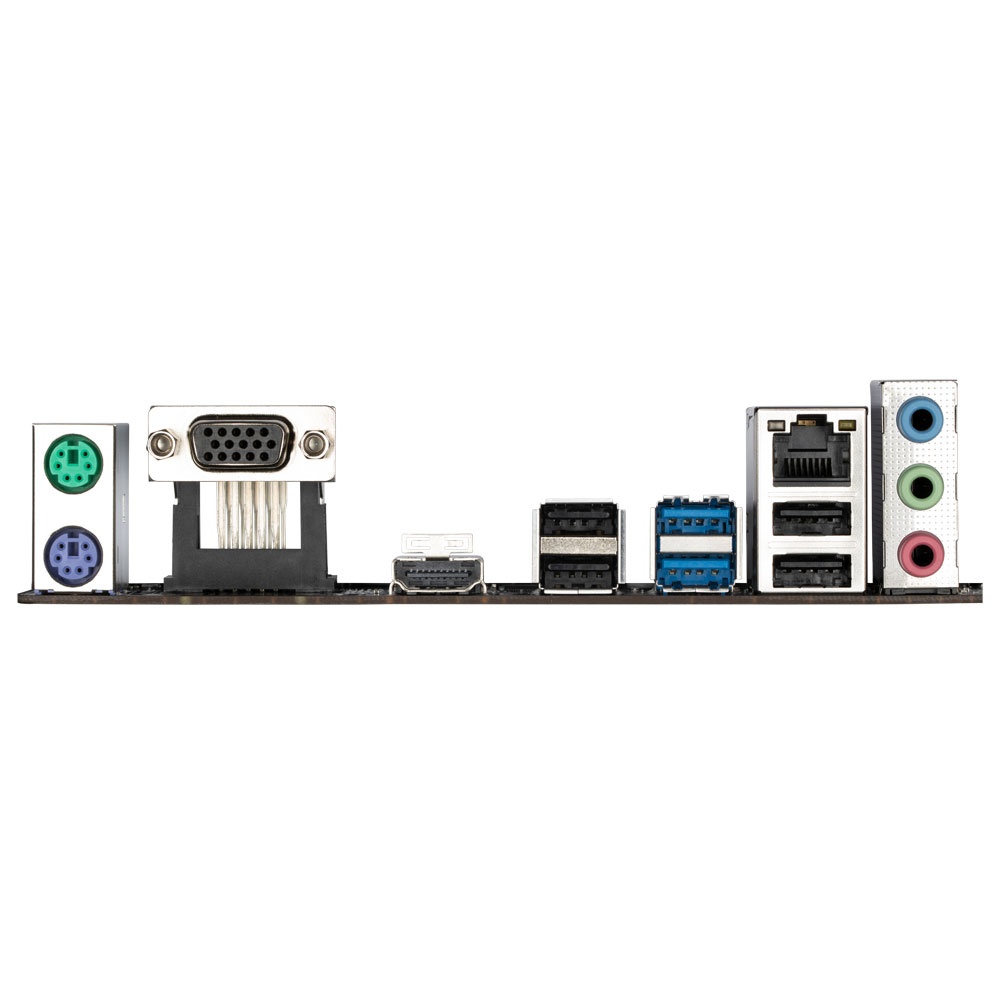

Anschlüsse Rückseite:
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x HDMI 2.0 port
  5. 2 x USB 3.2 Gen 1 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks
Anschlüsse intern:
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x M.2 Socket 3 connector
  4. 4 x SATA 6Gb/s connectors
  5. 1 x CPU fan header
  6. 2 x system fan headers
  7. 1 x RGB LED strip header
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.2 Gen 1 header
  11. 2 x USB 2.0/1.1 headers
  12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  13. 1 x serial port header
  14. 1 x Clear CMOS jumper
Formfaktor: Micro-ATX Form Factor: 23.0cm x 21.5cm
unterstütze Betriebssysteme: - Microsoft® Windows®10 64-bit / 11 64-bit
