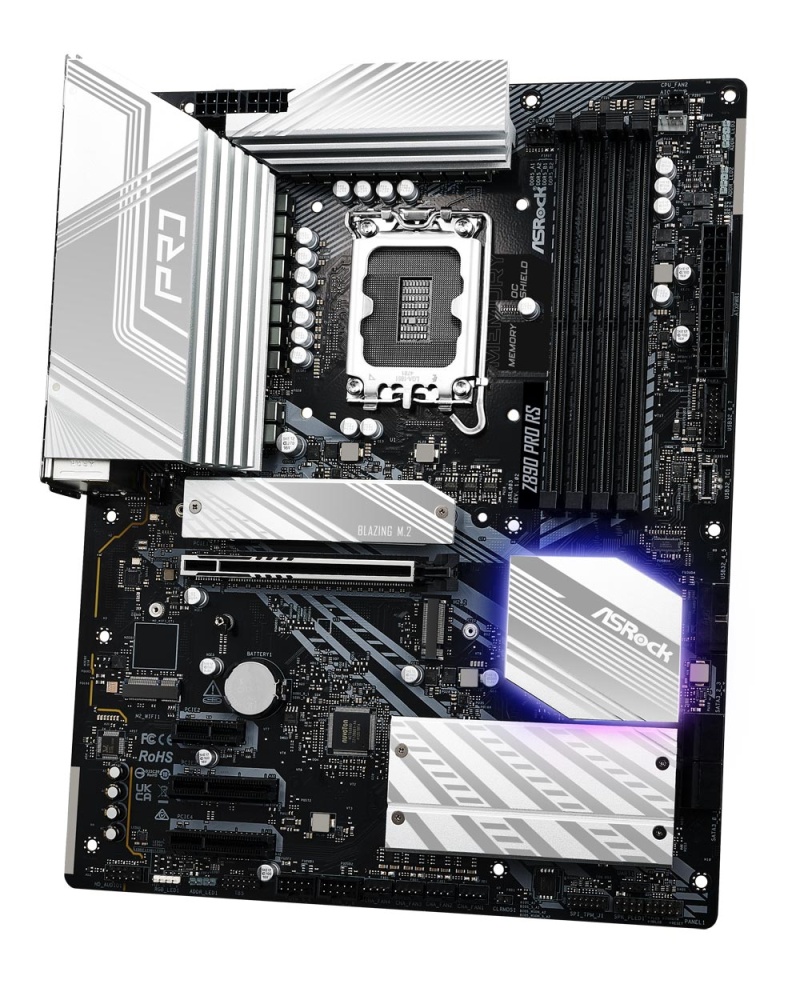

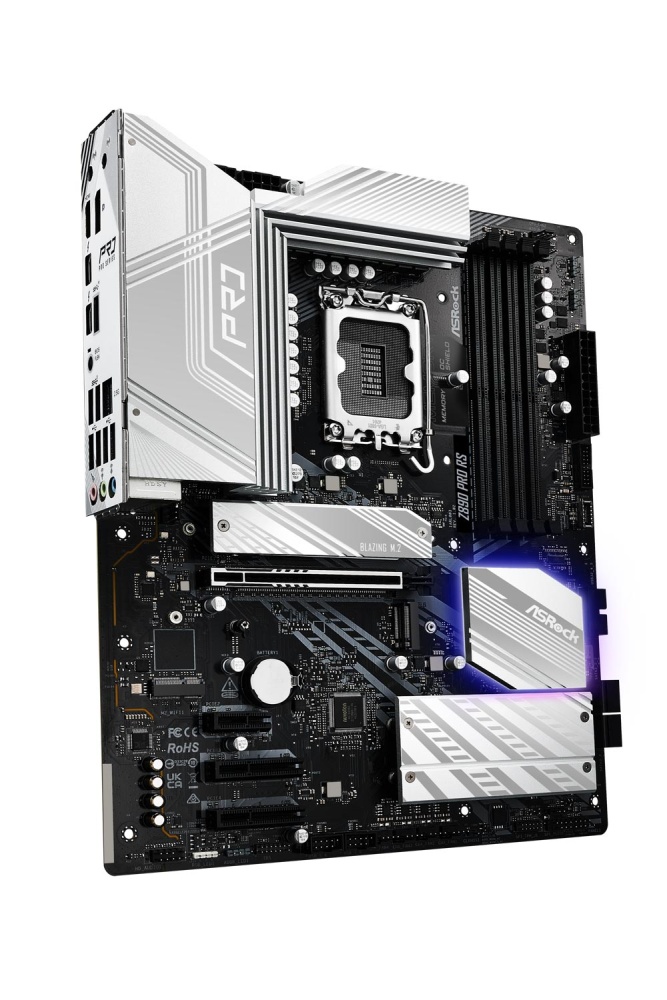

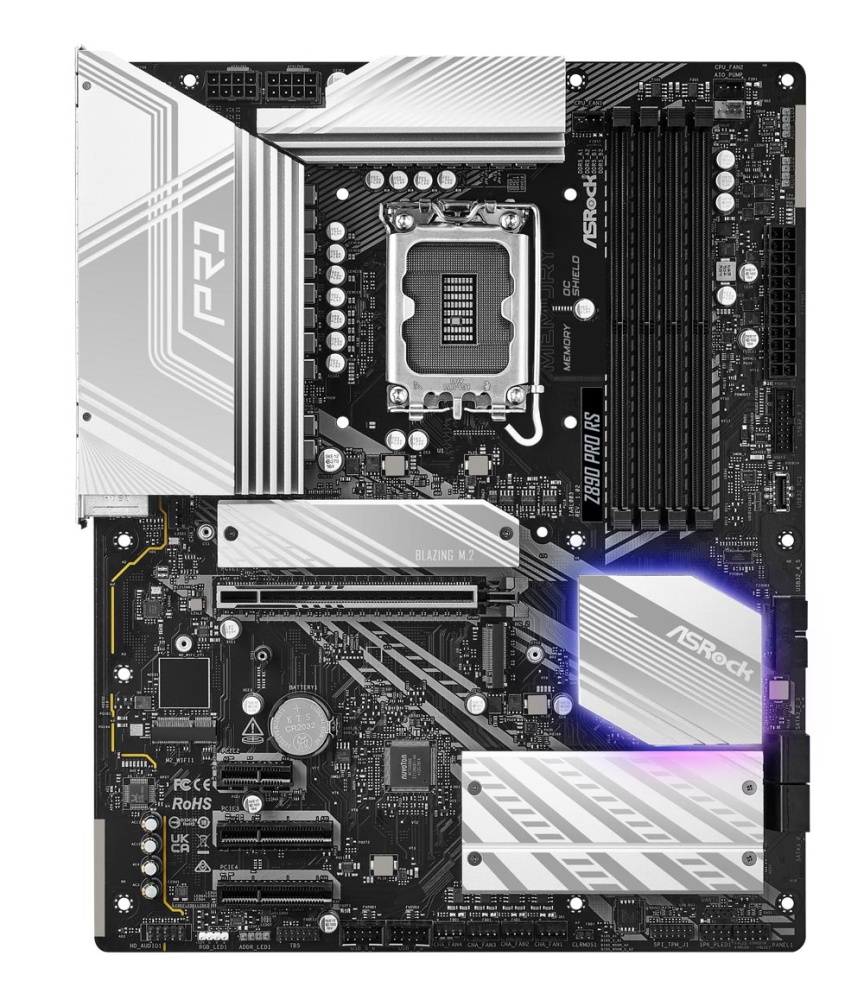

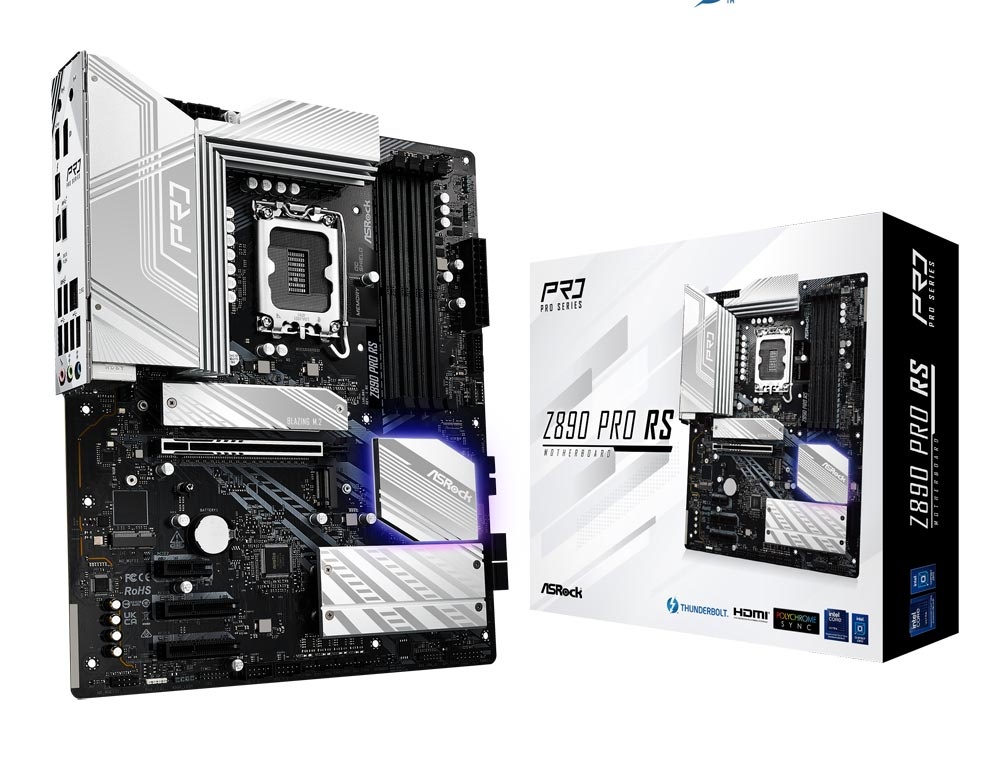

ASRock Z890 Pro RS, Intel Z890, ATX

• Supports Intel® Hybrid Technology

• Supports Intel® Turbo Boost Max 3.0 Technology

• Supports Intel® Thermal Velocity Boost (TVB)

• Supports Intel® Adaptive Boost Technology (ABT)

• Integrated NPU for dedicated AI acceleration

• 4 x DDR5 DIMM Slots

• Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*

• Supports Clocked Unbuffered DIMM (CUDIMM)

• Max. capacity of system memory: 256GB

• Supports Intel® Extreme Memory Profile (XMP) 3.0x

• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

• 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*

• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*


Chipset:

• 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*

• 1 x PCIe 4.0 x1 Slot (PCIE2)*

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*


Chipset:

• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

• 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

• 4 x SATA3 6.0 Gb/s Connectors

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

• Nahimic Audio

• Dragon RTL8125BG

• Supports Dragon 2.5G LAN Software

• Smart Auto Adjust Bandwidth Control

• Visual User Friendly UI

• Visual Network Usage Statistics

• Optimized Default Setting for Game, Browser, and Streaming Modes

• User Customized Priority Control

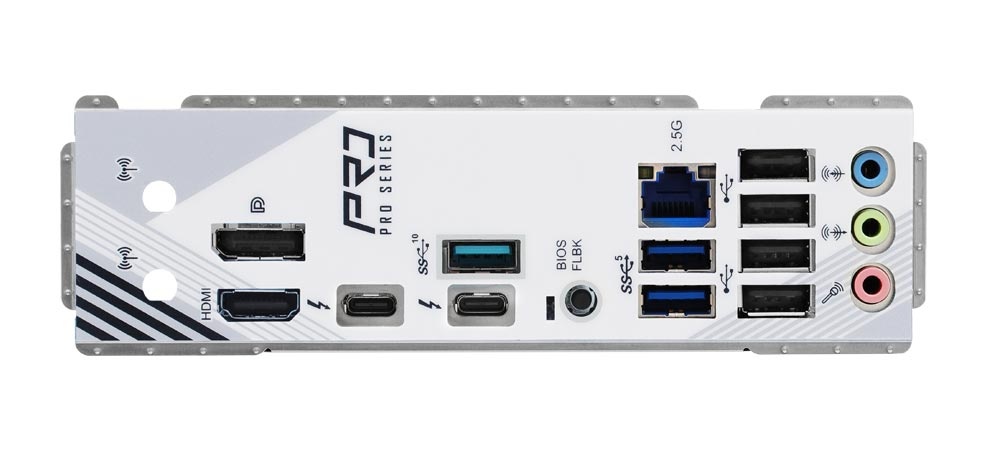

• 2 x Thunderbolt™ 4 Type-C (Rear)


Chipset:

• 1 x USB 3.2 Gen2x2 Type-C (Front)

• 1 x USB 3.2 Gen2 Type-A (Rear)

• 6 x USB 3.2 Gen1 (2 Rear, 4 Front)

• 8 x USB 2.0 (4 Rear, 4 Front)

• 1 x HDMI Port

• 1 x DisplayPort 1.4

• 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*

• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)

• 2 x USB 3.2 Gen1 Ports

• 4 x USB 2.0 Ports

• 1 x RJ-45 LAN Port

• 1 x BIOS Flashback Button

• HD Audio Jacks: Line in / Front Speaker / Microphone

• 1 x Power LED and Speaker Header

• 1 x RGB LED Header*

• 3 x Addressable LED Headers**

• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***

• 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***

• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

• 1 x 24 pin ATX Power Connector

• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

• 1 x Front Panel Audio Connector

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*
