Prozessor: LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipsatz: Intel® B860 Express Chipset
Speicher: Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Grafik: Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • Support for HDMI 2.1 version and HDCP 2.3.
  • 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  • Support for DisplayPort 2.1 version.

(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time

Steckplätze: CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  • The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  • 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)
Storage: CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
  • 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Sound: Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN:
  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module: Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard

Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

USB: Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 3 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

  • 4 x USB 2.0/1.1 ports available through the internal USB headers

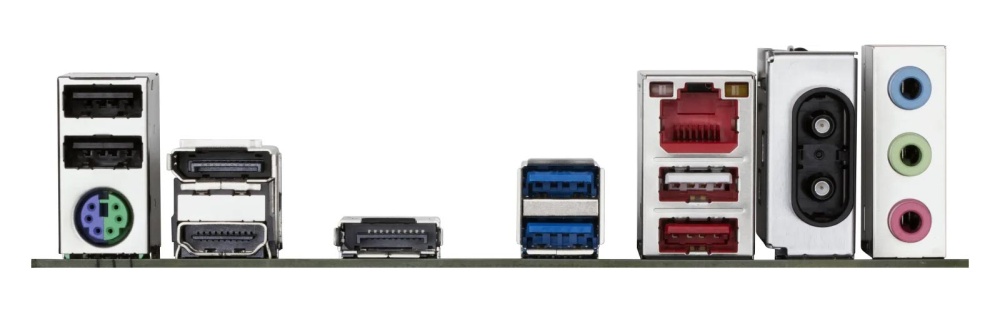

Anschlüsse Rückseite: 1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
Anschlüsse intern:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Formfaktor: Micro-ATX Form Factor: 24.4cm x 24.4cm
unterstütze Betriebssysteme: Support for Windows 11 64-bit
Support for Windows 10 64-bit
  • The Intel® NPU driver is only supported on Windows 11.
