Prozessor: LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU
Chipsatz: Intel® Z890 Express Chipset
Speicher: Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Grafik: Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
  • Support for DisplayPort 2.1 version
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  • Support for DisplayPort 2.1 version

(Graphics specifications may vary depending on CPU support.)

Steckplätze: CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:

  • 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Storage: CPU:
  • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280

PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

  • 1 x M.2 connector (Socket 3, M key, type 22110/2280

PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:

  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  • 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Sound: Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings

LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB: CPU:
  • 1 x USB4® USB Type-C® port on the back panel

Chipset:

  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

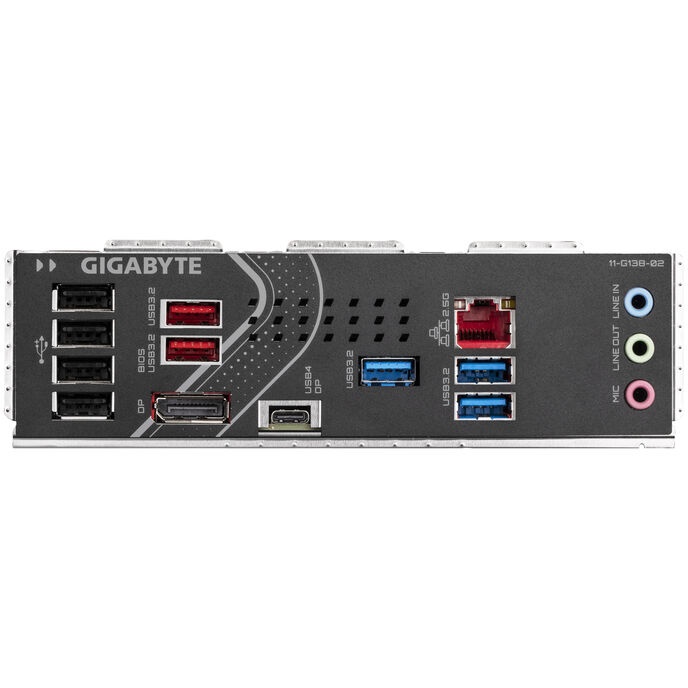

Anschlüsse Rückseite: 1 x USB4® USB Type-C® port (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort (Note)
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
Anschlüsse intern: 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Formfaktor: ATX Form Factor: 30.5cm x 24.4cm
unterstütze Betriebssysteme: - Microsoft® Windows® 11 64-bit
