• 61 W PoE-Leistung: 8× IEEE802.3at/af-konforme PoE+ Ports mit einer Gesamtleistung von bis zu 61W*.
  • Alles Gigabit Ports: 8× gigabit PoE+ ports und 2× gigabit SFP-Slots ermöglichen Hochgeschwindigkeitsverbindungen
  • In Omada-SDN integriert: Zero-Touch Provisionierung(ZTP)**, zentralisiertes Cloud-Management und intelligengentes Monitoring.
  • Zentralisiertes Management: Der Cloudzugriff und die Omada-App ermöglichen eine sehr konfortable, einfache Verwaltung.
  • Solide Sicherheitsstrategien: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, und vieles mehr.
  • Optimierte Voice- und Video-Anwendungen: L2/L3/L4 QoS und IGMP snooping.
HARDWARE-FUNKTIONEN
Standards und Protokolle IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

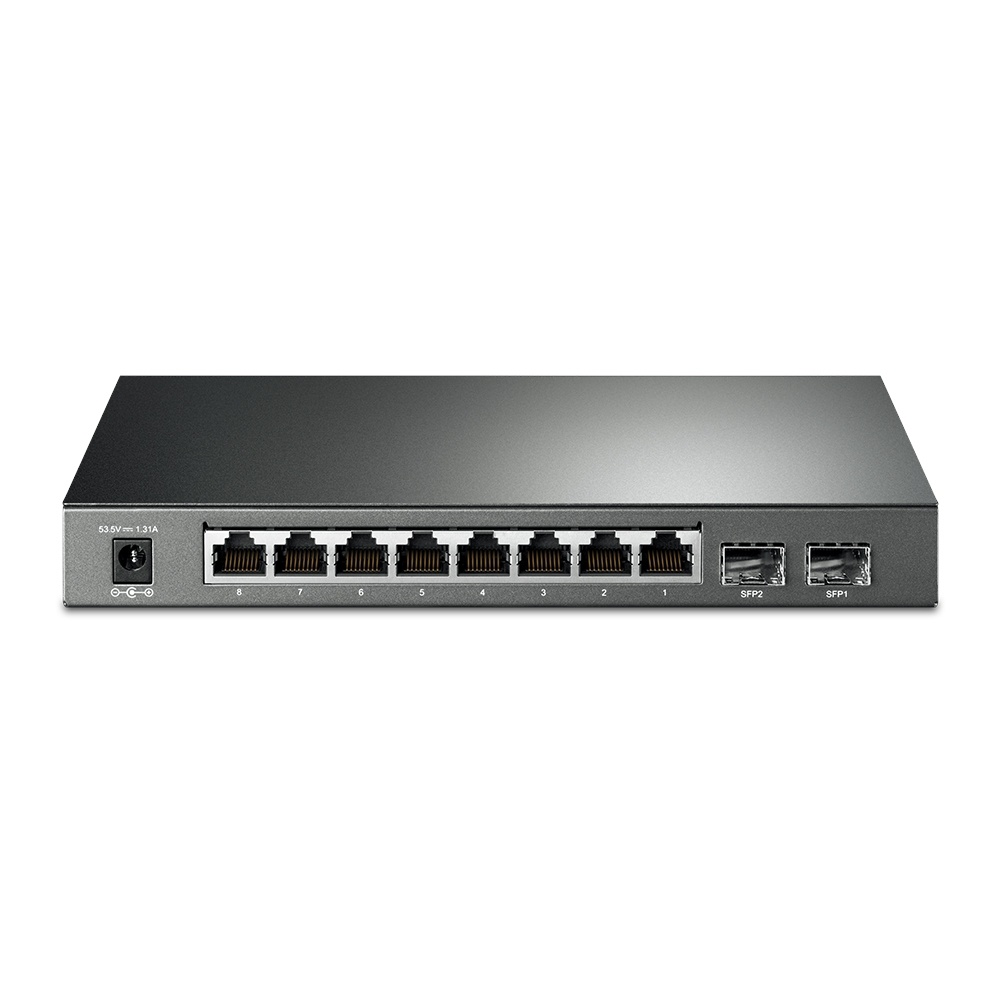

Schnittstelle 8 10/100/1000Mbit/s RJ45 Ports
2 1000Mbit/s SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)
Kabel 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Anzahl Lüfter Ohne Lüfter, Passivkühlung
Spannungsversorgung 100~240VAC, 50/60Hz
External Power Adapter(Output: 53.5VDC/1.31A)
Energieverbrauch • 10.3 W (220 V/50 Hz) (ohne PoE-Geräte)
• 76.5 W (220 V/50 Hz) (mit 61 W PD connectedPoE-Verbrauch)
PoE-Ports • Standard: 802.3af/at
• PoE Ports: 8 Ports
• PoE-Versorgung: 61 W*
Abmessungen (B*T*H) 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)
PERFORMANCE
Switchingkapazität 20 Gbit/s
Paketweiterleitungsrate 14.88 Mpps
MAC-Adresstabelle 8K
Paketpufferspeicher 4.1 Mbit
Jumbo-Frames 9 KB
SOFTWARE-FUNKTIONEN
Quality of Service • 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
  • SP (Strict Priority)
  • WRR (Weighted Round Robin)

• Queue Weight Config
• Bandwidth Control

  • Port/Flow based Rating Limit

• Smoother Performance
• Storm Control

  • Multiple Control Modes(kbps/ratio)
  • Broadcast/Multicast/Unknown-Unicast Control
Layer2- und Layer2+-Funktionen • 16 IP Interfaces
  • Support IPv4/IPv6 Interface

• Static Routing

  • 32 IPv4/IPv6 Static Routes

• DHCP Server
• DHCP Relay

  • DHCP Interface Relay
  • DHCP VLAN Relay

• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation

  • Static link aggregation
  • 802.3ad LACP
  • Up to 8 aggregation groups and up to 8 ports

per group
• Spanning Tree Protocol

  • 802.1D STP
  • 802.1w RSTP
  • 802.1s MSTP
  • STP Security: TC Protect, BPDU Filter/Protect,

Root Protect
• Loopback Detection
• Flow Control

  • 802.3x Flow Control

• Mirroring

  • Port Mirroring
  • CPU Mirroring
  • One-to-One
  • Many-to-One
  • Flow-Based
  • Ingress/Egress/Both

• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED

VLAN • VLAN Group
  • Max. 4K VLAN Groups

• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN

Zugriffskontrollliste • Support up to 230 entries
• Time-Range
  • Time Slice
  • Week Time-Range
  • Absolute Time-Range
  • Holiday

• Time-based ACL
• MAC ACL

  • Source MAC
  • Destination MAC
  • VLAN ID
  • User Priority
  • Ether Type

• IP ACL

  • Source IP
  • Destination IP
  • IP Protocol
  • TCP Flag
  • TCP/UDP Source Port
  • TCP/UDP Destination Port
  • DSCP/IP TOS

• IPv6 ACL
• Combined ACL
• Rule Operation

  • Permit/Deny

• Policy Action

  • Mirror
  • Rate Limit
  • Redirect
  • QoS Remark

• ACL Rules Binding

  • Port Binding
  • VLAN Binding

• Actions for flows

  • Mirror (to supported interface)
  • Redirect (to supported interface)
  • Rate Limit
  • QoS Remark
Sicherheit • AAA
• 802.1X
  • Port based authentication
  • MAC (Host) based authentication
  • Authentication Method includes PAP/EAP-MD5
  • MAB
  • Guest VLAN
  • Support Radius authentication and

accountability
• IP/IPv6-MAC Binding

  • 512 Binding Entries
  • DHCP Snooping
  • DHCPv6 Snooping
  • ARP Inspection
  • ND Detection

• IP Source Guard

  • 253 Entries
  • Source IP+Source MAC

• IPv6 Source Guard

  • 183 Entries
  • Source IPv6 Address+Source MAC

• DoS Defend
• Static/Dynamic/Permanent Port Security

  • Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

  • kbps/ratio control mode

• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC based access control

Verwaltung • Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
SONSTIGES
Zertifizierung CE, FCC, RoHS
Verpackungsinhalt TL-SG2210P
Netzteil
Installationsanleitung
Gummifüße
Systemanforderungen Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Umgebung Betriebstemperatur: 0℃~40℃ (32℉~104℉);
Lagertemperature: -40℃~70℃ (-40℉~158℉)
Betriebsluftfeuchtigkeit: 10%~90% nicht kondensierend
Lagerluftfeuchtigkeit: 5%~90% nicht kondensierend
